Accepted by ICML 2026
Demystifying Action Space Design for Robotic Manipulation Policies
*Equal contribution · 1Institute for AI Industry Research, Tsinghua University · 2Shanghai AI Lab · 3Peking University
Motivation

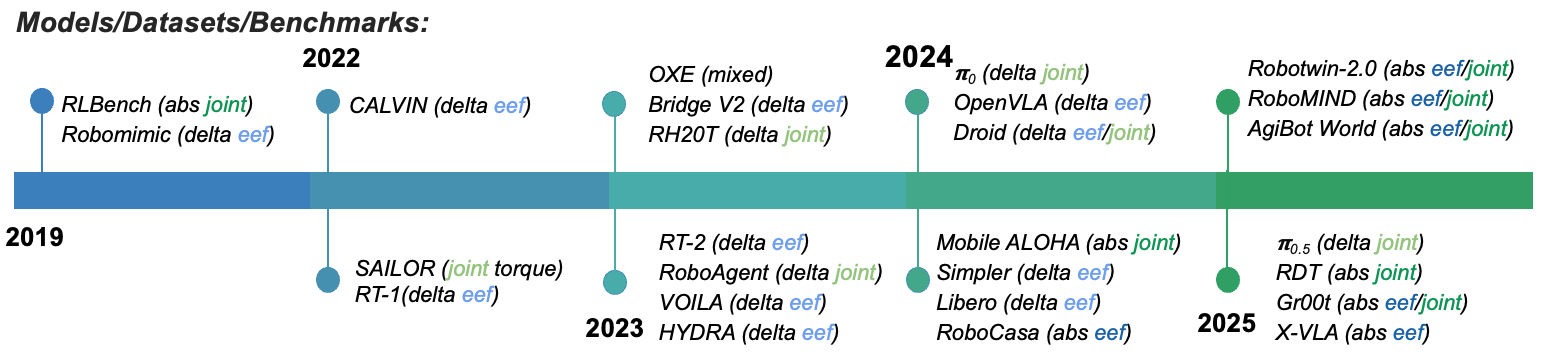

Action Space Design Has Not Reached Consensus
Action space specification is a critical design choice in imitation-based robotic manipulation policy learning. The chosen action space fundamentally shapes the optimization landscape and learning dynamics of robotic policies.

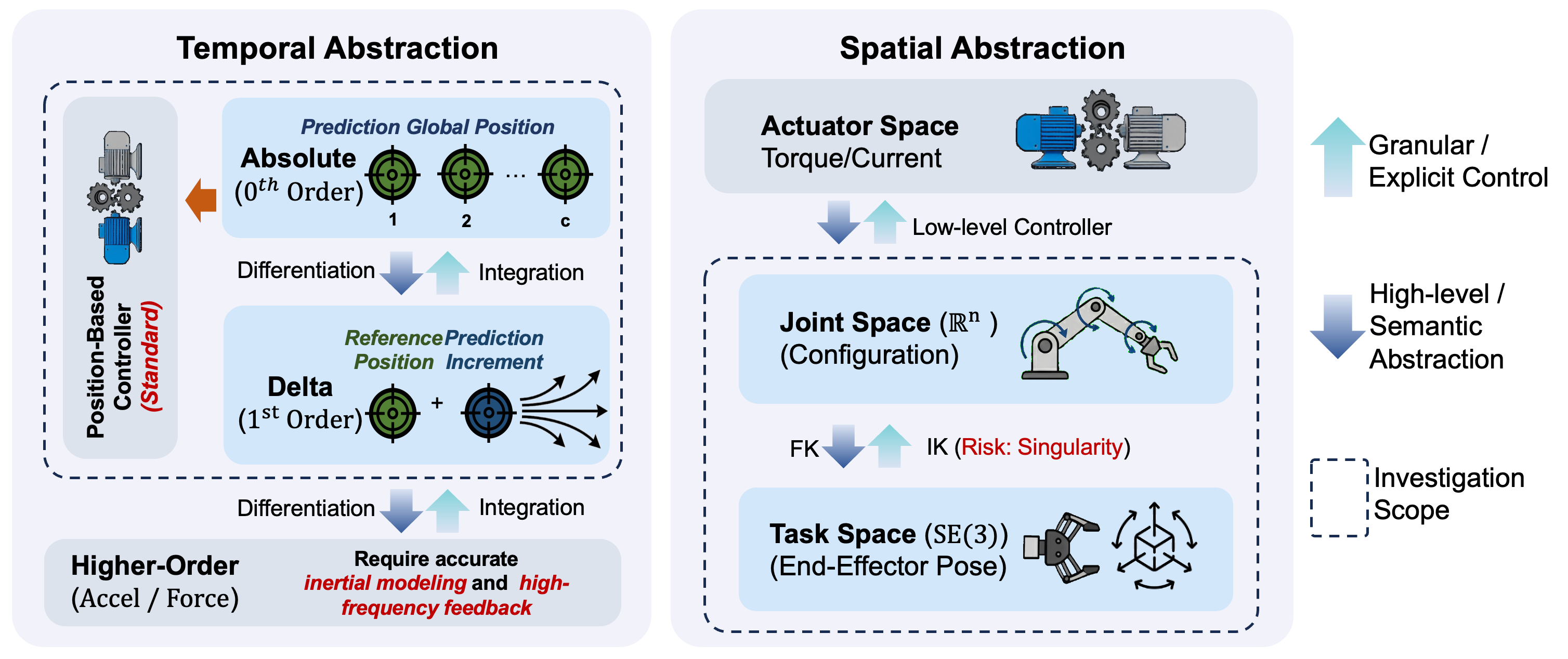

Because action spaces are often selected using ad-hoc heuristics or legacy conventions, their role remains unclear. We conduct a large-scale empirical study and decompose action design along two key dimensions.

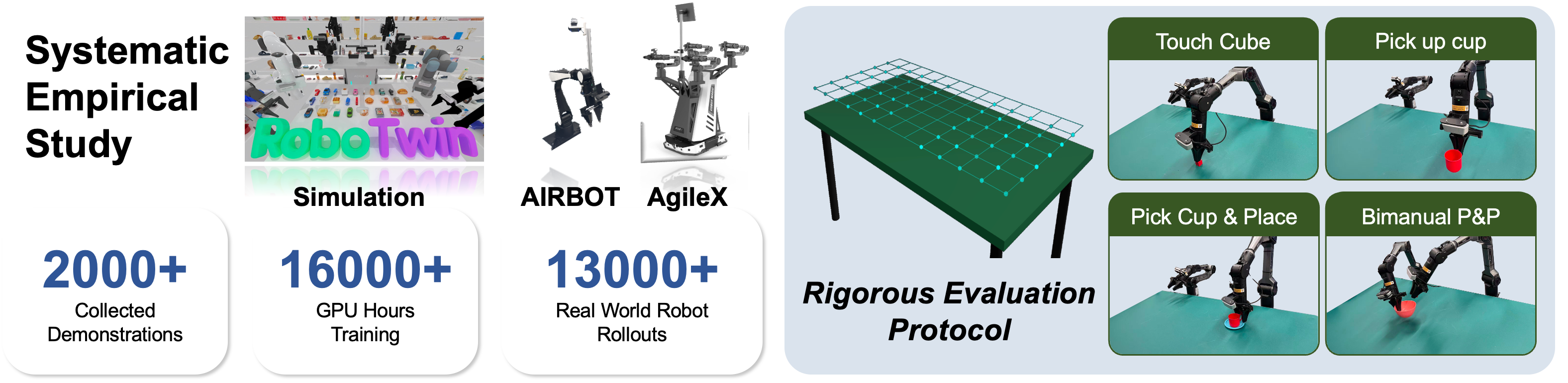

Experiment Setup
A Systematic Testbed for Action Representation Choices

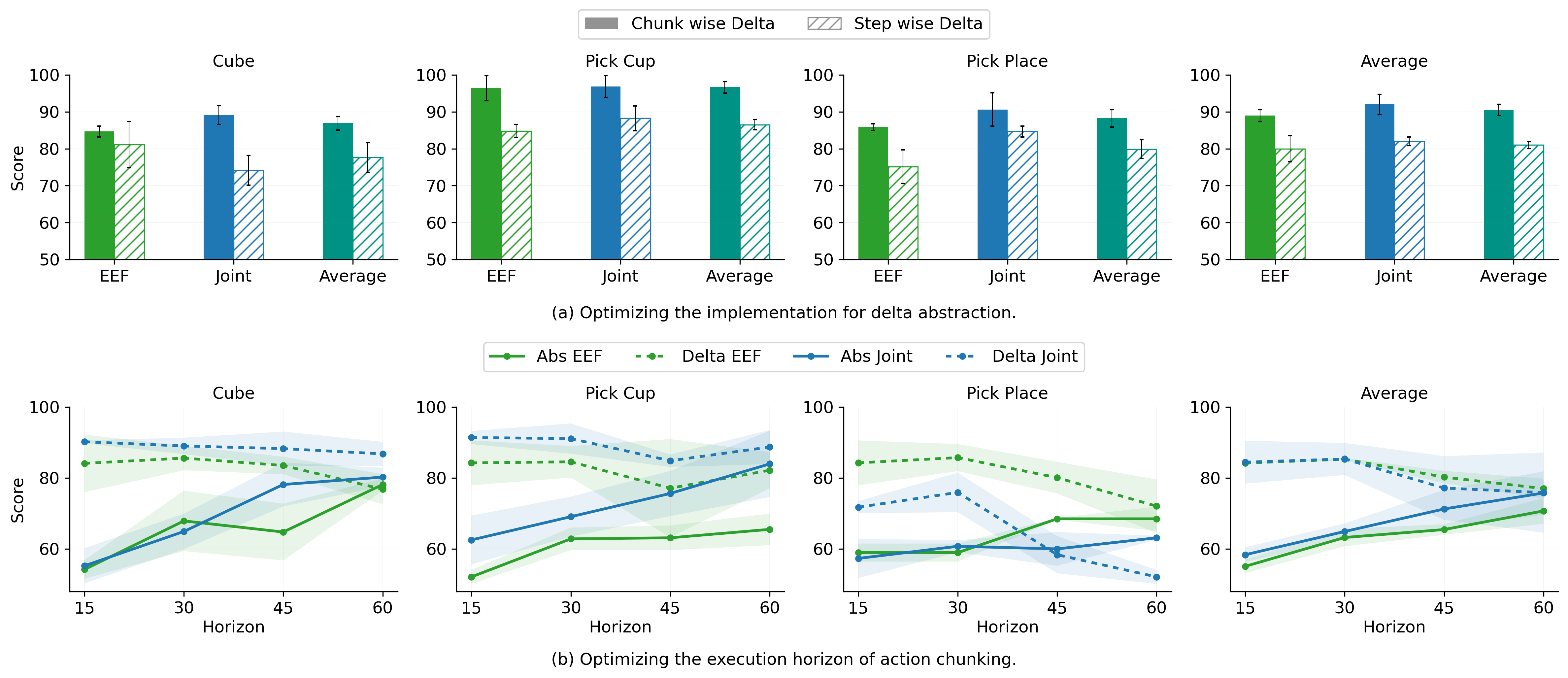

Preliminary
Implementation Nuances Are Decisive
Chunk-wise delta is fundamentally superior to step-wise delta.
Optimal horizons are critical and abstraction-dependent: delta requires shorter windows while absolute thrives with longer horizons.

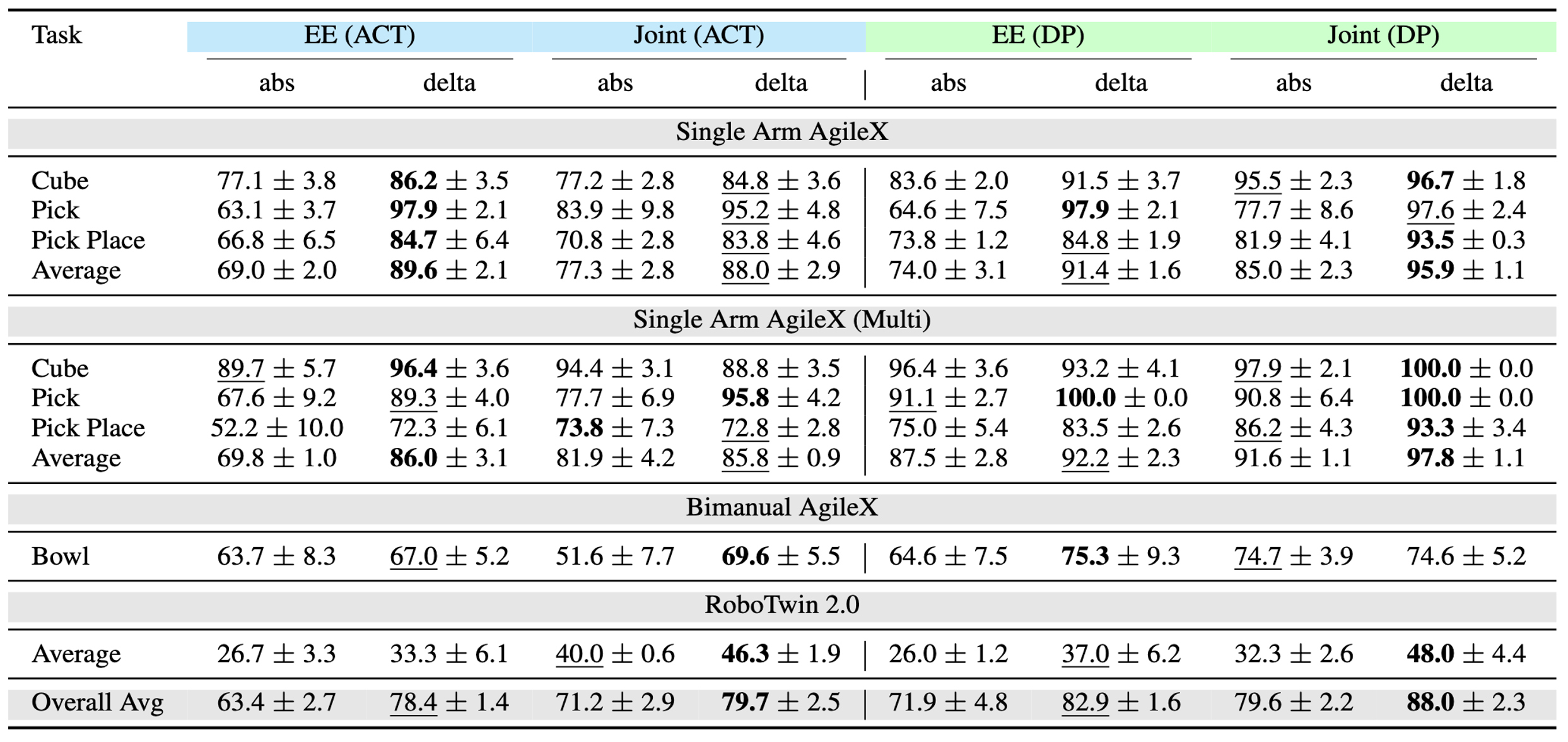

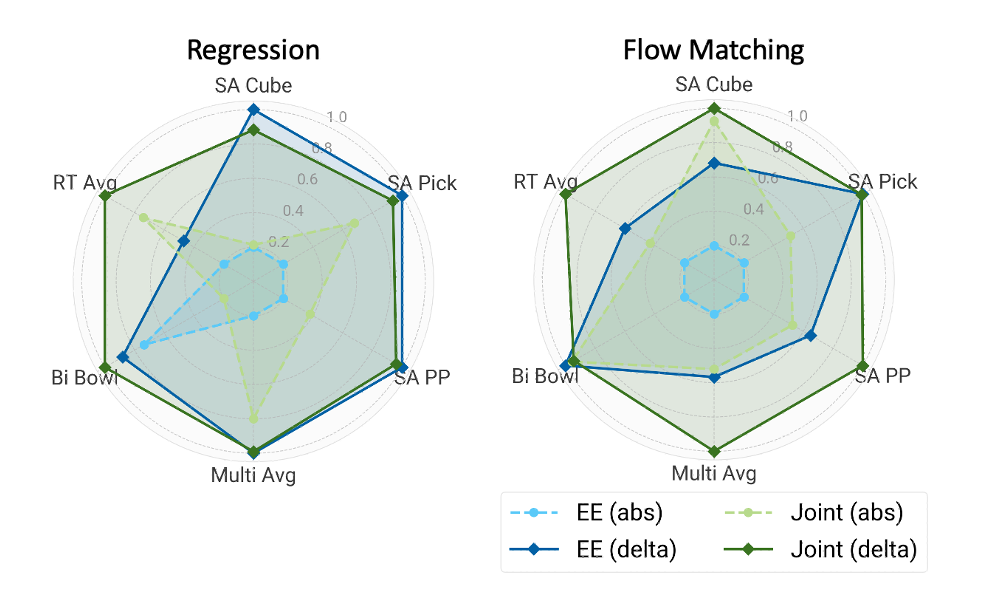

Overall Takeaways
Delta, Joint-Space, and Task-Space Strengths Depend on Regime
The superiority of delta actions remains consistent across diverse learning regimes.
Joint-space actions benefit exceptionally from stronger modeling capacity and extensive training.

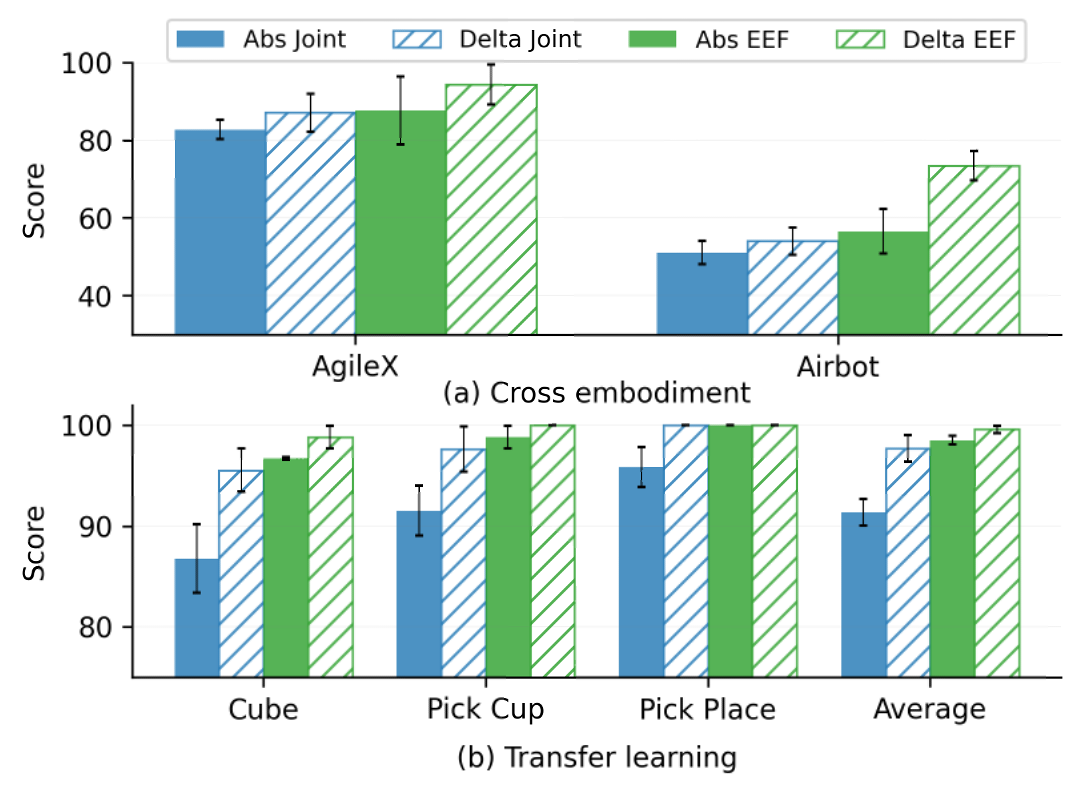

Task-space representations show a pronounced advantage in generalized settings such as cross embodiment and transfer learning.

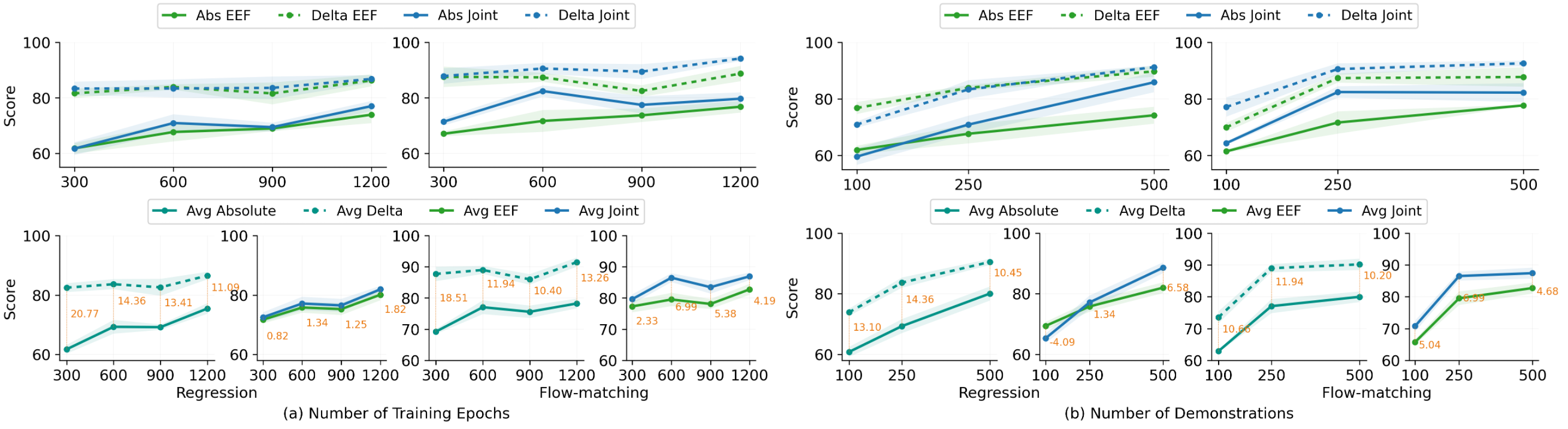

Scaling Experiments
Modern Backbones Amplify Representation Effects
Delta actions serve as a superior temporal abstraction for modern policy backbones.
Joint-space control generally provides a robust spatial representation, particularly when paired with strong generative modeling.
Sample Rollout Videos

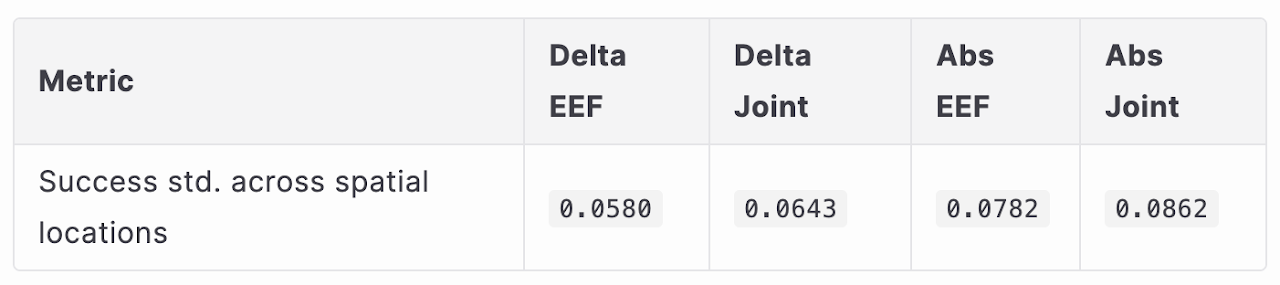

Spatial Variation
Performance Uniformity Across Workspace Locations
We partition the workspace into a 6x6 grid and evaluate
each policy across spatial bins. For each action representation, we
compute success rate within each cell and summarize spatial
heterogeneity by the standard deviation of per-cell success rates.
Lower values indicate more uniform performance across the workspace.
RoboTwin

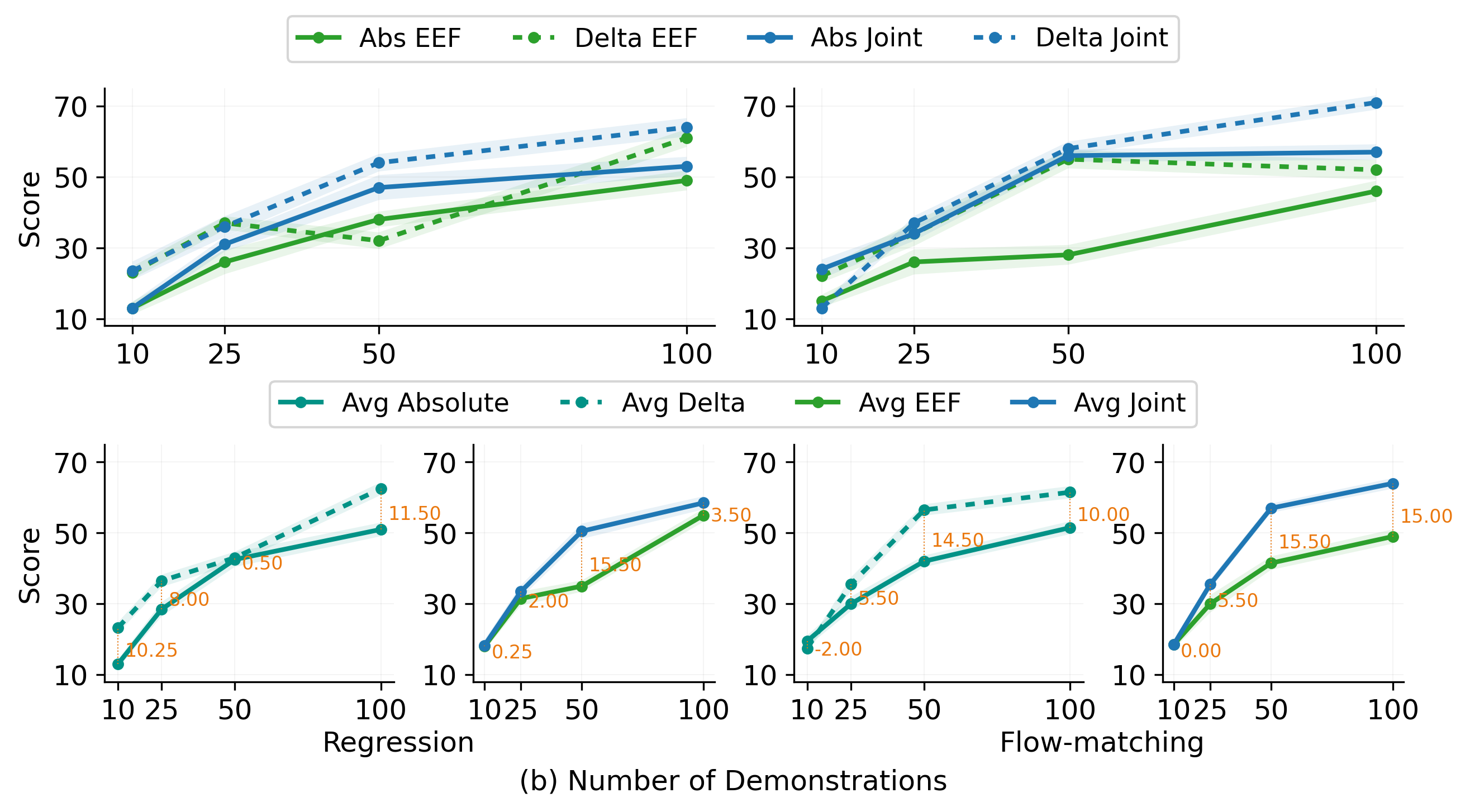

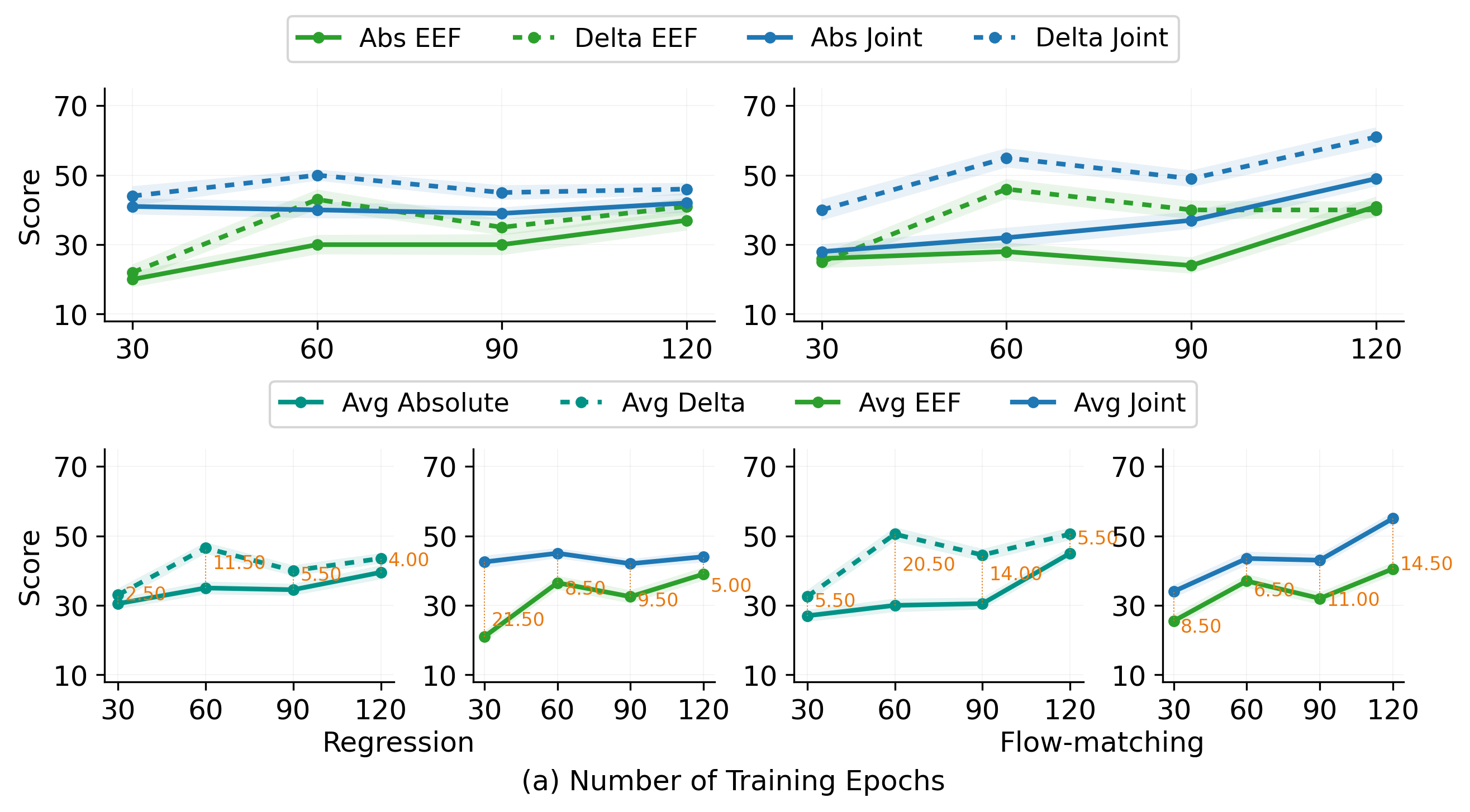

Scaling Experiments on RoboTwin
Sample Rollout Videos

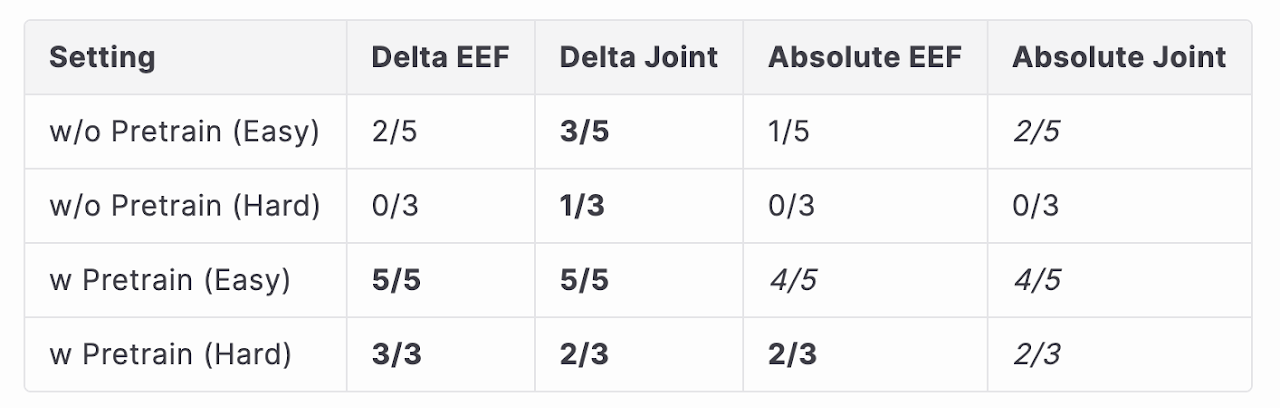

Cloth Folding
Advanced VLA Experiments for Deformable Object Manipulation
We introduce advanced experiments on cloth folding as a representative deformable object manipulation task. The VLA model uses a VLM+DiT backbone and two evaluation protocols designed to stress-test adaptability.
